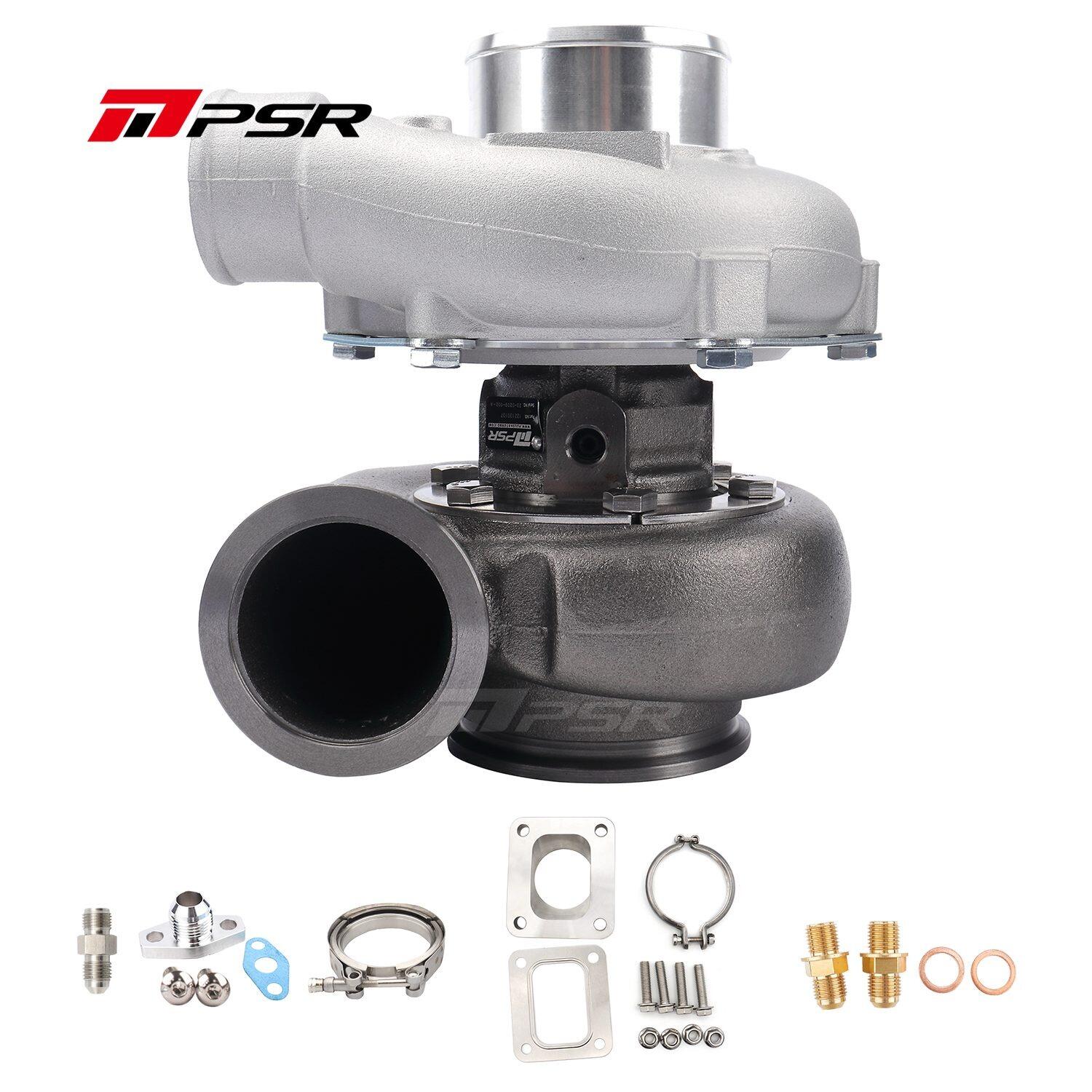

• Compact compressor cover
• Dual Ceramic Ball Bearing System
• 7+7 Blade Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9 Blade Turbine Wheel
• Multiple options for turbine housing
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: 70 lb/min, rated @ 750 FWHP

DESCRIPTION

• Compressor Wheel: 62.5*82.4mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 3.0” Hose
• Compressor Outlet: 2.0” Hose

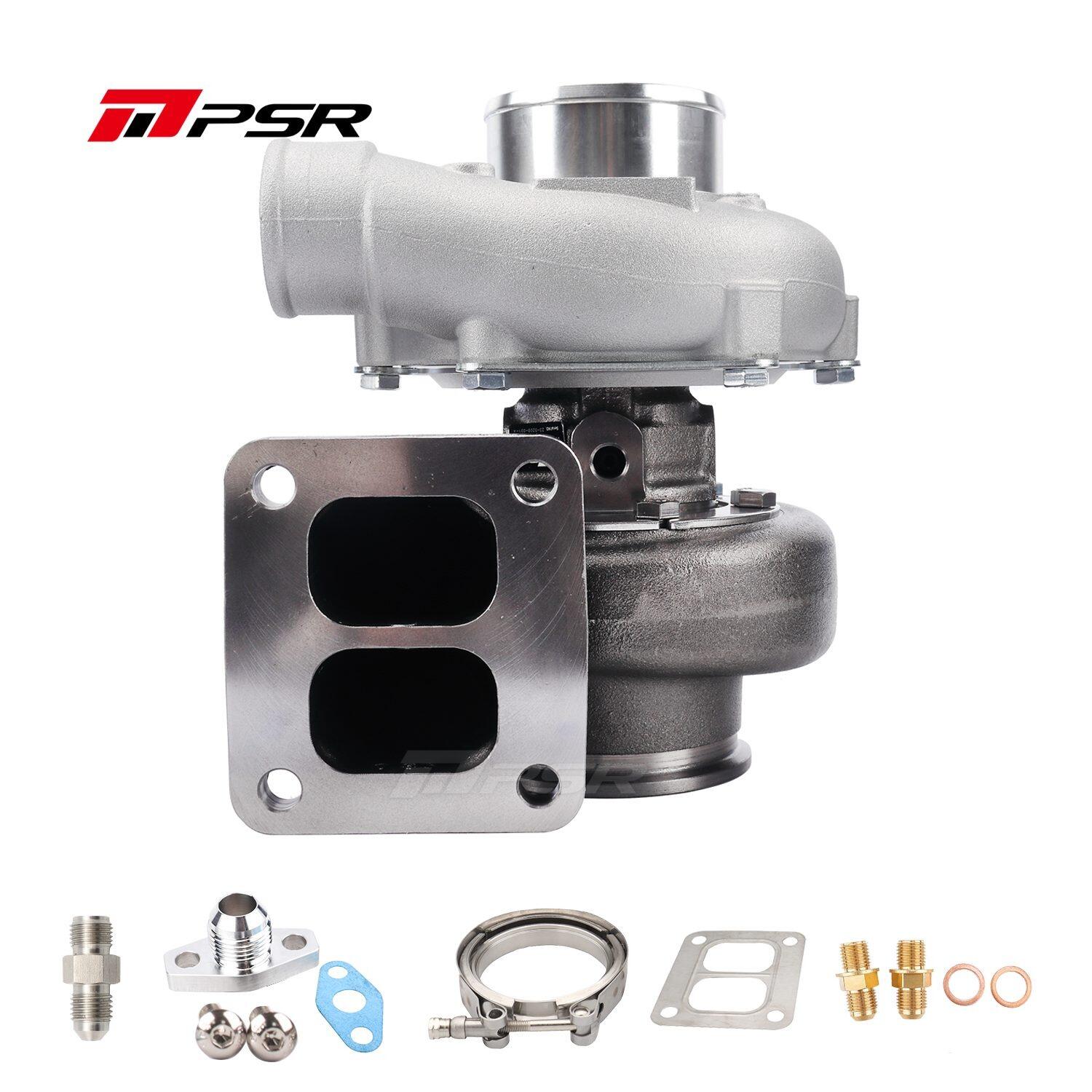

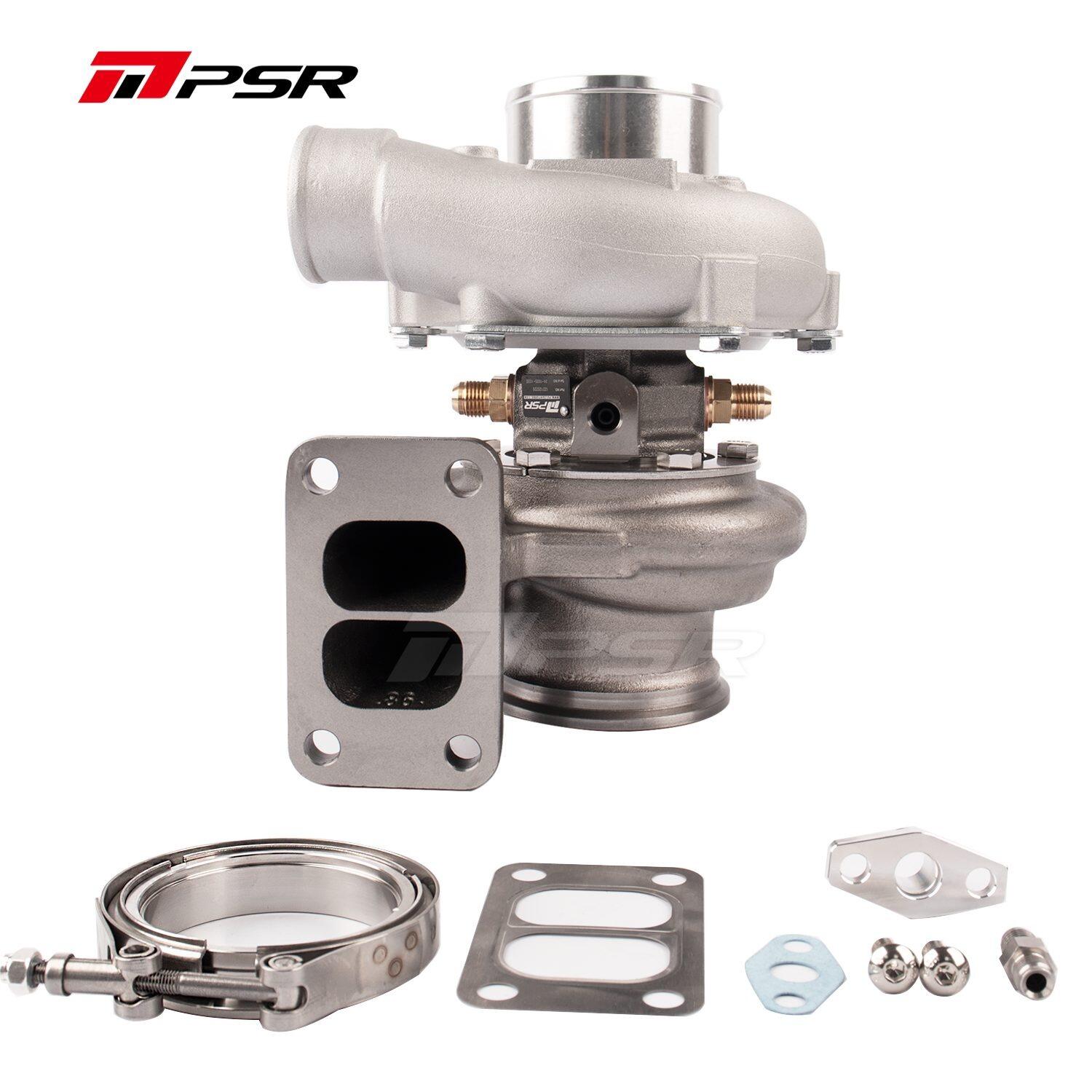

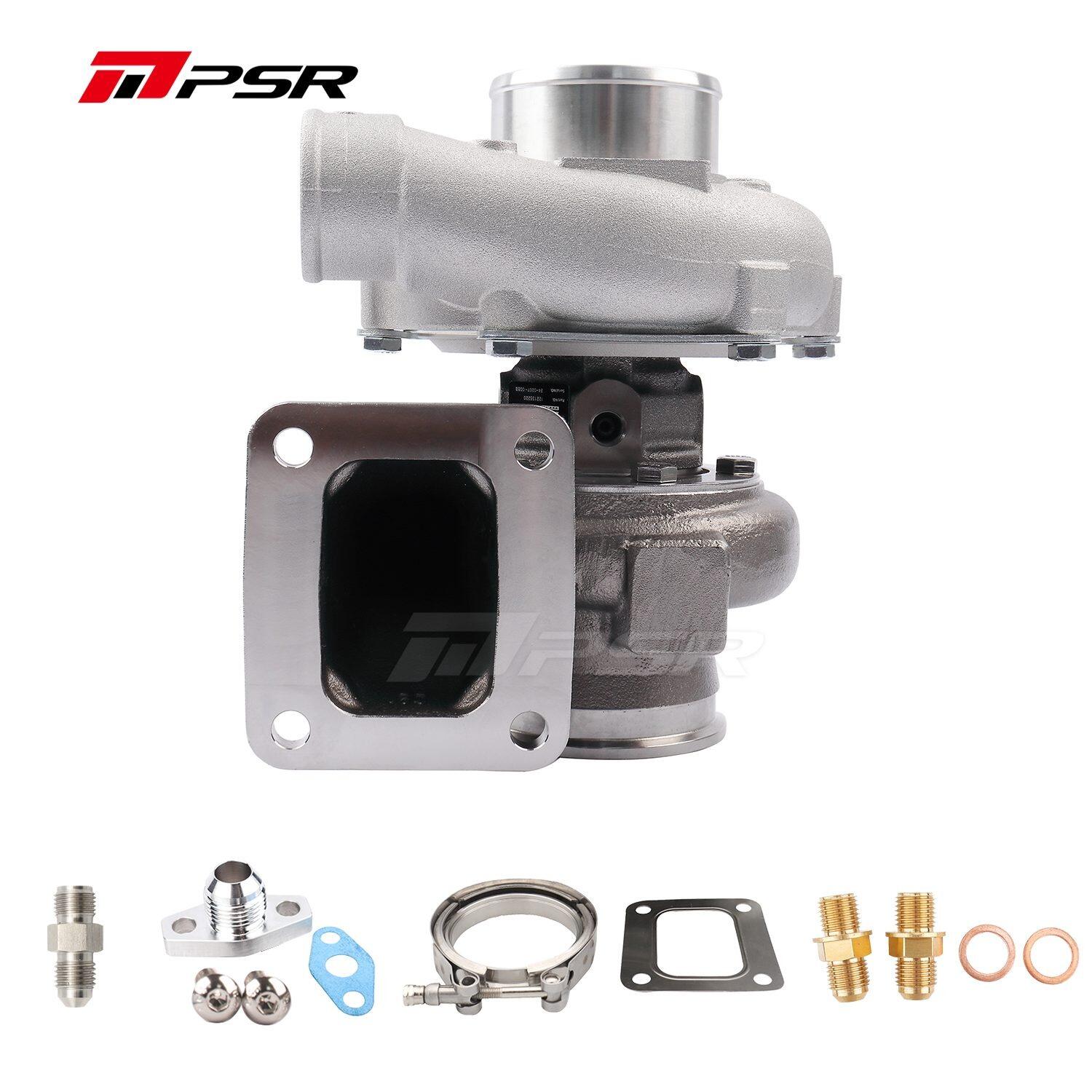

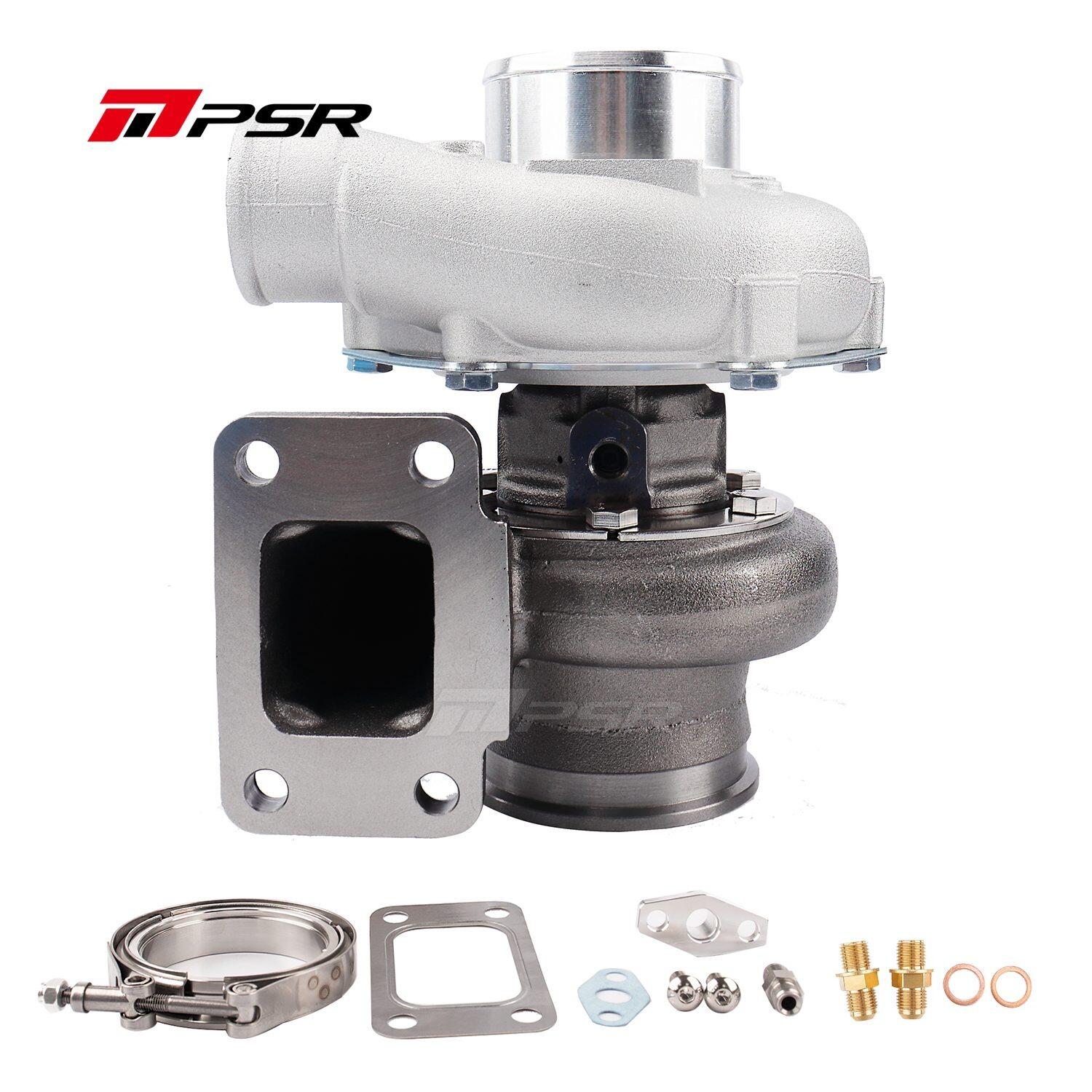

• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Turbochargers come high speed trim balanced ready to use and include fitting hardware.

Remember, buying your PTX3582 COMPACT performance ball bearing turbochargers from us means you receive:

• a complete BRAND NEW turbocharger
• a full hardware install kit*
• a full VAT invoice
• NO import charges, duty fees or other hidden charges (UK CUSTOMERS ONLY)
• 12 Months UK-based Warranty

As a turbocharger specialist, we can offer FULL servicing and repair services to the Pulsar Turbo range of units.

7-10 WORKING DAYS DISPATCH

*where available
